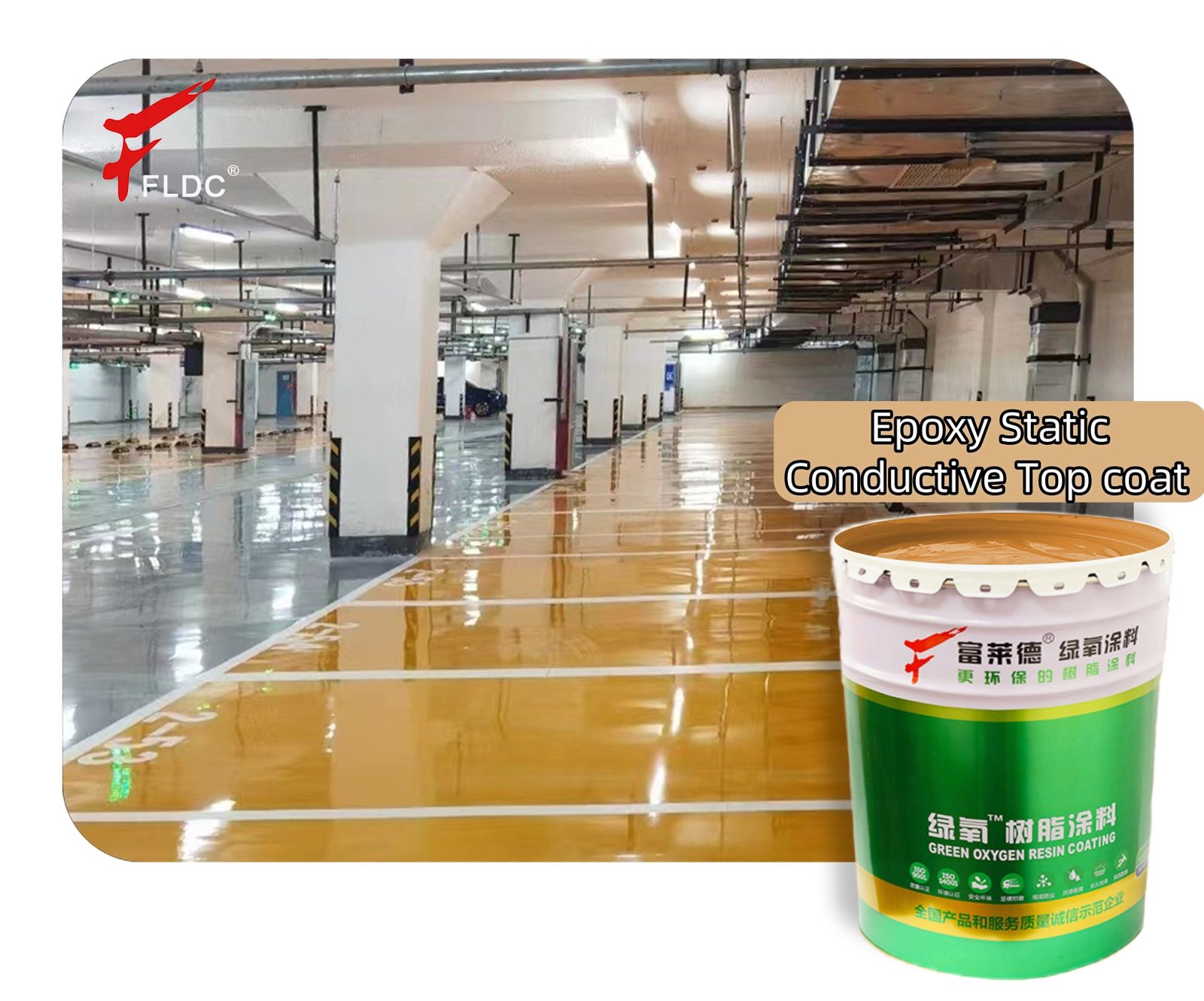

conductive epoxy coatingDesign Usage 1. Suitable for coatings with high anti-corrosion performance requirements on steel or concrete floors that require electrostatic conductivity. |
1. Excellent static conductive properties;
2. Cathodic protection for steel surfaces;
3. Excellent chemical resistance;
4. The paint film is hard, wear-resistant and collision-resistant;
5. Strong adhesion to steel and concrete surfaces.
3. Excellent chemical resistance;
4. The paint film is hard, wear-resistant and collision-resistant;
5. Strong adhesion to steel and concrete surfaces.
Product Composition:
Special epoxy resin + pigment + filler + advanced conductive material + solvent + additives, etc.
Special epoxy resin + pigment + filler + advanced conductive material + solvent + additives, etc.
|
Technical Indicators:
|
| Item | Index |
| Color |
Various Colors
|
| Viscosity | (15.25±1ºC) 80 ≤ s ≤ 100 |
|
Solid content
|
≥ 50%
|
|
Adhesion
|
Level 1 |
| Flexibility | 1mm |
|
Impact resistance
|
≥ 50 (kg·cm) |
| Hardness | ≥ 0.5 (double pendulum) |
|
Surface Resistivity
|
≤ 109Ω |
|
Volume Resistivity
|
105-108 (Ω·m) |
|
Heat Resistance
|
160ºC-180ºC |
|
Minimum Curing Temperature
|
10ºC |
|
Construction Parameters:
|
| Item | Index | |
|
Component
|
Two components A and B
|
|
|
Weight Ratio
|
A : B = 4 : 1 | |
|
Theoretical Coating Rate
|
4-5m2/kg (Average value, smooth surfaces are not included in the loss) |
|
|
Paint Film Thickness
|
WFT | 175μm |
| DFT | 80μm | |
|
Applicable Time (25ºC)
|
3h | |
|
Aging Time (25ºC)
|
0.5h | |
|
Drying time (25±1ºC)
|
Surface drying | 8h |
| Actual drying | 24h | |
| Fully cured | 7d | |
